Multimodal Entrance Detection

Geospatial entrance detection using aerial imagery, street-view images, GPS trajectories, and building footprint overlays.

2026.01 - 2026.05

Overview

Multimodal Entrance Detection is a geospatial AI project for identifying likely building entrance locations from heterogeneous spatial and visual signals. The project frames entrance localization as a candidate-ranking problem, combining building geometry, aerial imagery, street-view images, and GPS traces to infer where people are likely to enter a building.

Method

The system uses a multimodal VLM-based inference pipeline. For each building, candidate entrance locations are sampled along the building boundary and combined with multimodal inputs such as building footprints, aerial overlays, street-view images, and nearby GPS traces. The VLM predicts candidate-level entrance probabilities, which are then refined through score calibration using rank-based and GPS-density priors.

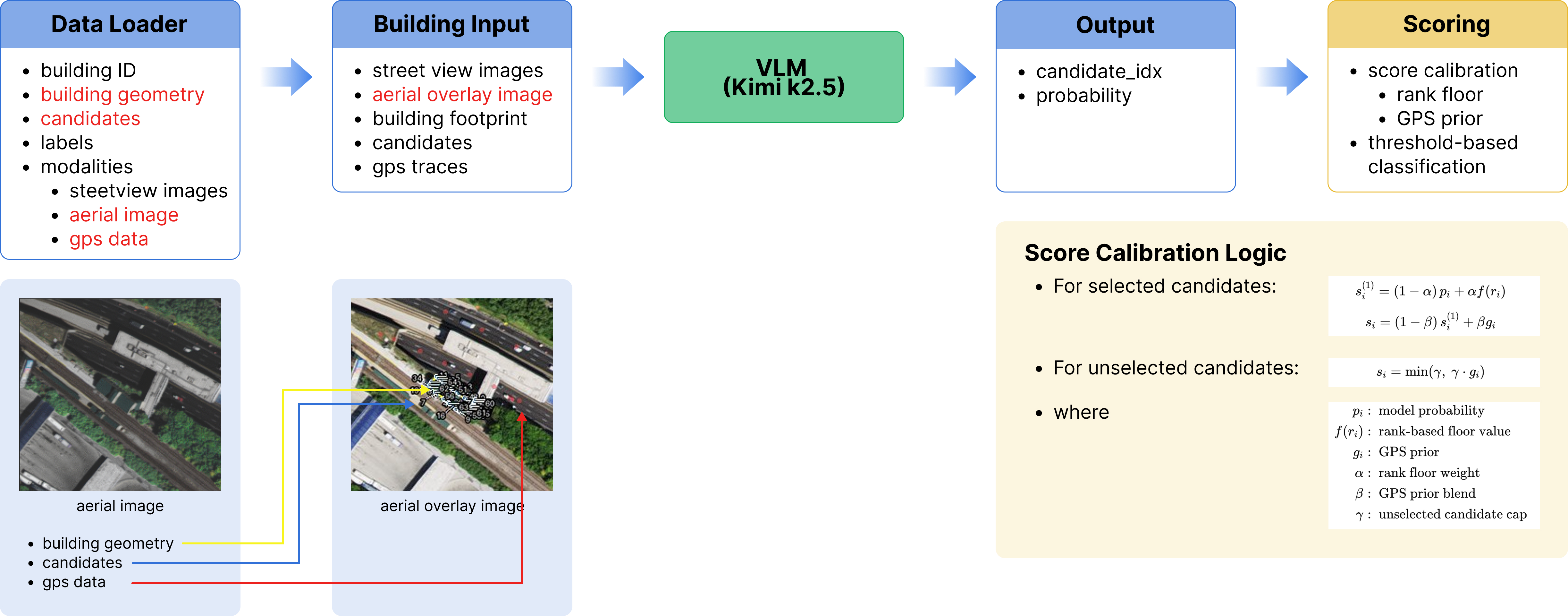

Figure 1. Multimodal VLM inference pipeline. The system combines aerial imagery, street-view images, building footprints, candidate locations, and GPS traces into a VLM-based candidate-ranking pipeline, followed by score calibration using rank and GPS priors.

Results

GPS- and rank-aware calibration improved candidate selection quality by combining VLM confidence with spatial priors from pedestrian trajectories.

Effect of Score Calibration

Calibration Params (α / β / γ) Accuracy Precision Recall F1 AUROC AUPR
None 0.972 0.381 0.364 0.372 0.751 0.175
0.30 / 0.10 / 0.10 0.977 0.500 0.364 0.421 0.764 0.258
0.10 / 0.05 / 0.02 0.965 0.313 0.455 0.370 0.795 0.214
0.30 / 0.05 / 0.01 0.976 0.474 0.409 0.439 0.835 0.268
0.30 / 0.02 / 0.01 0.984 0.733 0.500 0.595 0.912 0.450
0.30 / 0.01 / 0.01 0.974 0.400 0.273 0.324 0.713 0.152

Takeaway. Score calibration improved F1 from 0.372 to 0.595 and AUPR from 0.175 to 0.450, showing that GPS- and rank-aware spatial priors helped refine candidate entrance ranking.

Effect of Overlay-Based Spatial Representation

Spatial Overlay Accuracy Precision Recall F1 AUROC AUPR
Without overlay 0.956 0.237 0.409 0.300 0.782 0.168
With overlay 0.972 0.381 0.364 0.372 0.751 0.175

Takeaway. Overlaying building geometry, candidate points, and GPS traces onto aerial imagery improved spatial grounding, increasing F1 from 0.300 to 0.372 and Precision from 0.237 to 0.381.

Key Features

  • Multimodal entrance detection using aerial imagery, street-view images, GPS traces, and building footprints.
  • Candidate-level entrance prediction across 64 possible access points per building.
  • Vision-language model reasoning with geospatial overlay inputs.
  • GPS-aware score calibration and reranking for improved candidate selection.
  • Evaluation using F1, AUROC, and AUPR for entrance localization quality.

Tech Stack

Python · Vision-Language Models · Qwen · DoRA · Geospatial Data · GPS Trajectories · Evaluation Metrics
